Introduction of Low Power GSM GPRS Modules

Low power GSM GPRS modules USR-GM3 are used for data transparent transmission. USR-GM3 is highly-integrated UART to GSM/GPRS module. Users can easily make communication with it among serial device, cellphone and network device. USR-GM3 is an embedded GSM module. It is designed for embedded system, and it is so small and convenient that you can integrate it to your system easily.


Features of Low Power GSM GPRS Modules

Small and completed function GPRS DTU, transmission between serial and GPRS
Support GSM850/900,DCS1800/1900
Support GSM/GPRS and 2G/3G/4G card, but don’t support 3G/4G network
Support 2 sockets, Support TCP and UDP
4KB cache for each of sockets, user can choose to cache data or not
Support register packet and heartbeat packet
Support setting parameters via SMS message
Support 3 work modes: SMS transmission mode, network transmission mode and httpsD mode
Support basic and extend AT command sets
Support class RFC2217, can dynamically modify serial parameter of module via network
Support flow control: RTS/CTS
Support RS485


Function of Low Power GSM Modules

Function of Low Power Gsm Modules which used for data transparent transmission.



Structure of Low Power Gsm Modules

Structure of Low Power Gsm Modules



Features of Low Power GSM Modules

Unique Features of Low Power Gsm Modules



Unique Features of Low Power Gsm Modules, register packet



When USR-GM3 module works as TCP CLIENT, and after TCP connection is established, module will automatically send scheduled register packet to help TCP Server identify the TCP connection.
Register packet includes IMEI code, ICCID code and user-defined register data.



Unique Features of Low Power Gsm Modules, heartbeat packet


USR-GM3 GPRS module can send heartbeat packet to network server and serial device in network transmission mode.
GPRS module maintains the normal connection with server by keeping sending serial heartbeat packet.
Serial heartbeat packet is mainly applied to sensors which can not actively send data to server. And serial heartbeat packet can realize real-time monitoring of sensor device.


Unique Features of Low Power Gsm Modules, lBS base station location


LBS base station location can get location information of USR-GM3 by mobile network.


Socket b function of Gsm Modules is suitable for such requirements as sending data to two servers

Socket b function is suitable for such requirements as sending data to two servers, data backup and remote abnormity diagnosis.

ftp remote upgrade of Low Power Gsm Modules

USR-GM3 connects with FTP server to remotely upgrade user’s devices such as charging pile, instruments and remote POS machine. Only custom firmware has this function.


Application Field of Low Power Gsm Modules

Agricultural IOT Environment Monitoring Solution

Agricultural IOT Environment Monitoring Solution for Gsm Modules



Charging Pile Data Real-time Transmission Solution

Charging Pile Data Real-time Transmission Solution for Gsm Modules



City Bus Real-time Data Acquisition Solution

City Bus Real-time Data Acquisition Solution for Gsm Modules



Remote POS Online Payment Solution

Remote POS Online Payment Solution for Low Power Gsm Modules

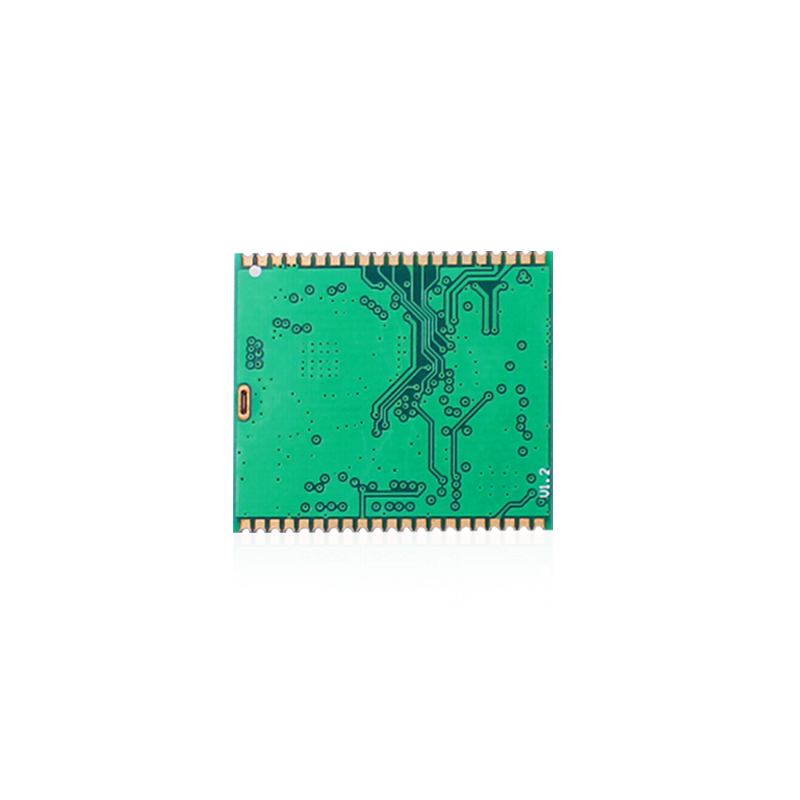

Image of Low Power Gsm Modules

Image of Low Power Gsm Modules
